A UniFi network and full rack build

A complete Ubiquiti network, from the rack build to the WiFi on the ceiling: UniFi switching behind a WatchGuard firewall, with every patch lead cut and dressed to length.

Talk to us about your network Call 01303 720282

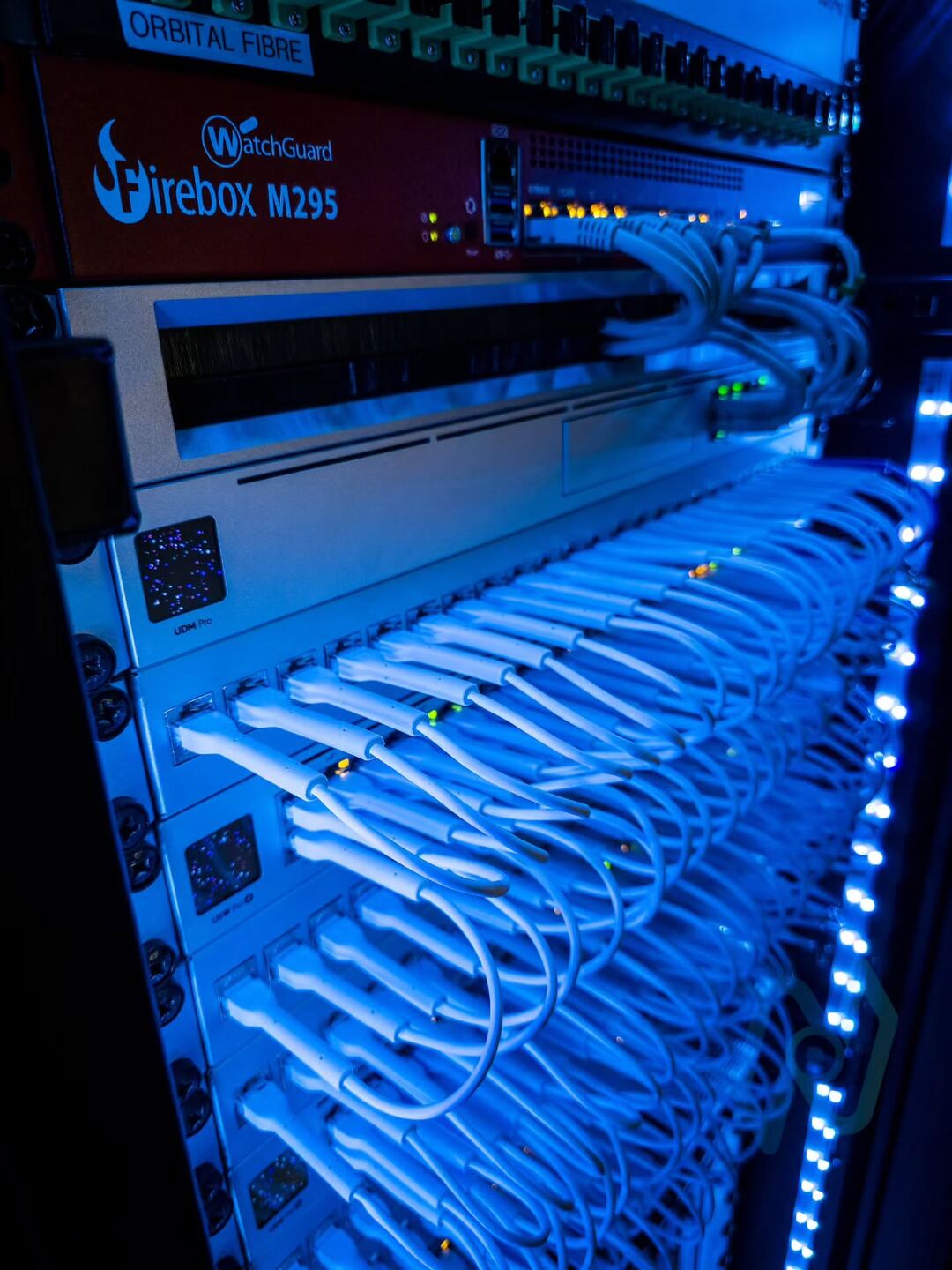

WatchGuard Firebox M295 firewall above rows of neatly dressed patch leads

What we installed

A full rack build: patch panels, switching, firewall and equipment laid out so every port is easy to find and work on.
Ubiquiti UniFi switching, managed centrally, so the network can be monitored and changed remotely.
A WatchGuard Firebox M295 firewall protecting the network and its internet connection.
UniFi WiFi access points on the ceilings, for strong coverage across the building.
Neat, dressed patching, with every lead cut to length, so faults are quick to trace and the rack stays tidy as it grows.

A tidy rack isn’t just for show: it keeps air flowing to the equipment, makes faults quicker to trace, and lets the next engineer see exactly what goes where.

More about WiFi and data networks · The network at Motis Cheriton Truck Park

Photos

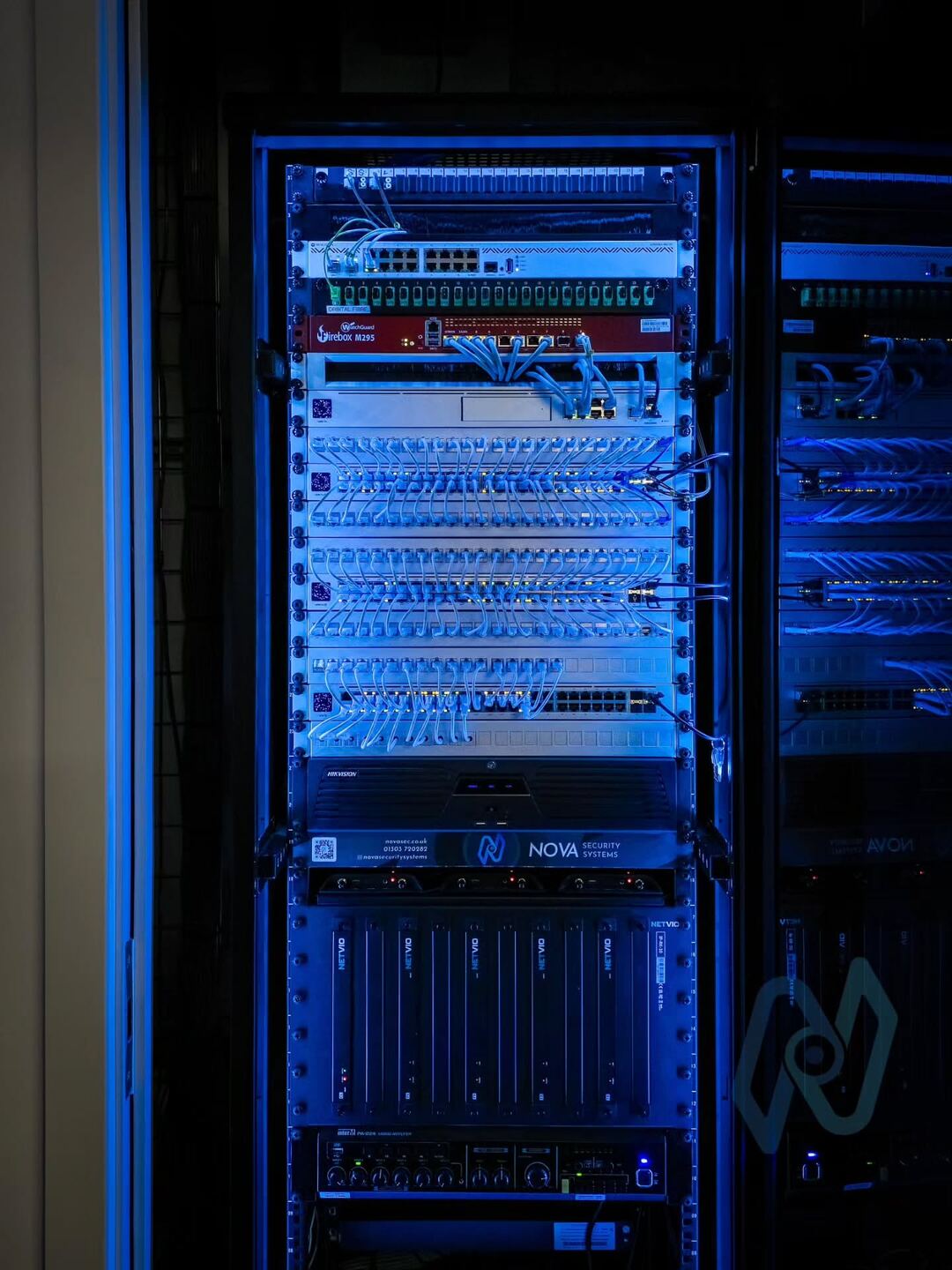

The finished network rack, lit blue, with neatly dressed patch leads and the Nova panel

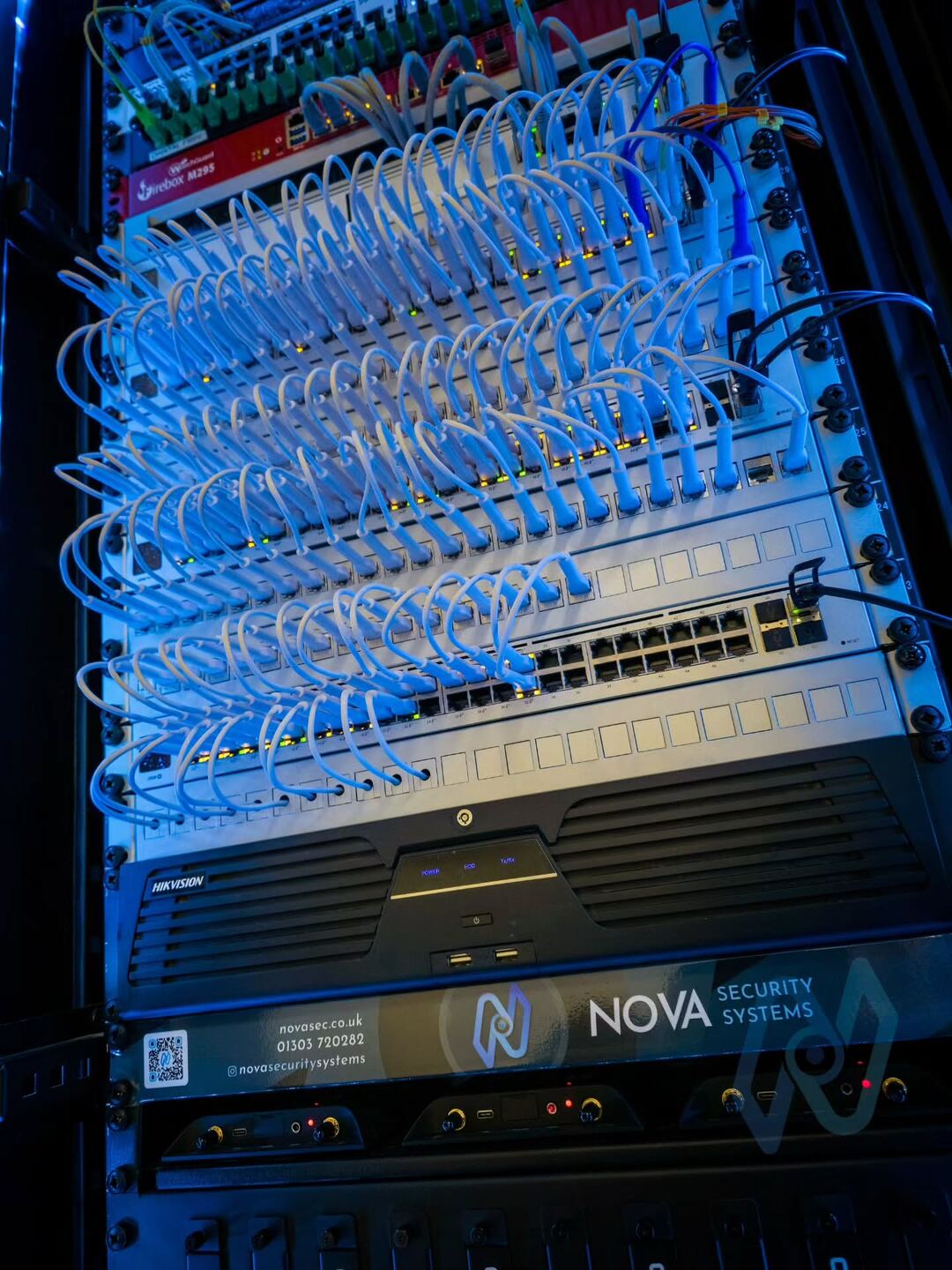

Patch panels and UniFi switches above the Nova Security Systems rack panel

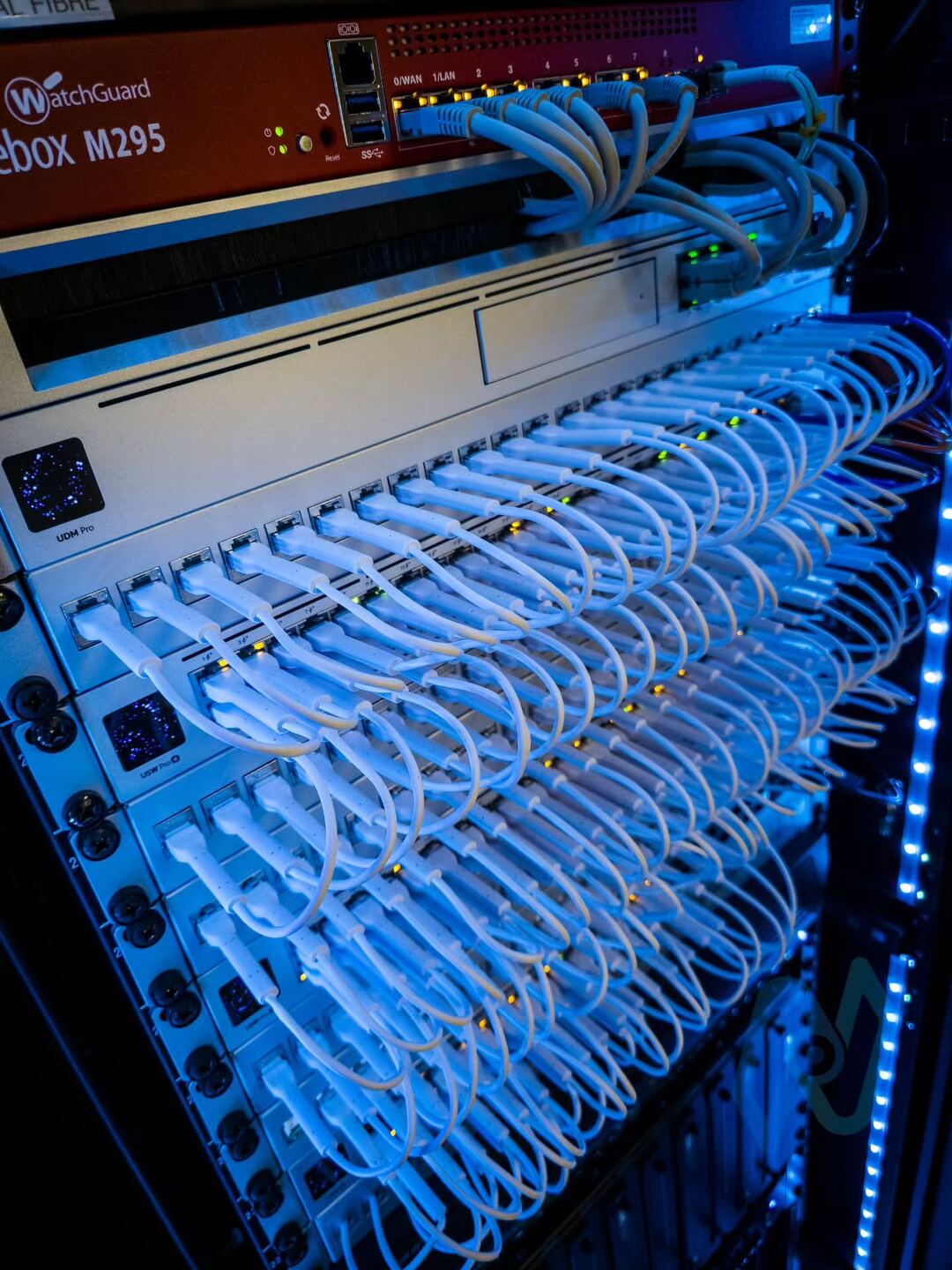

Patch panels and switches with every lead dressed to length

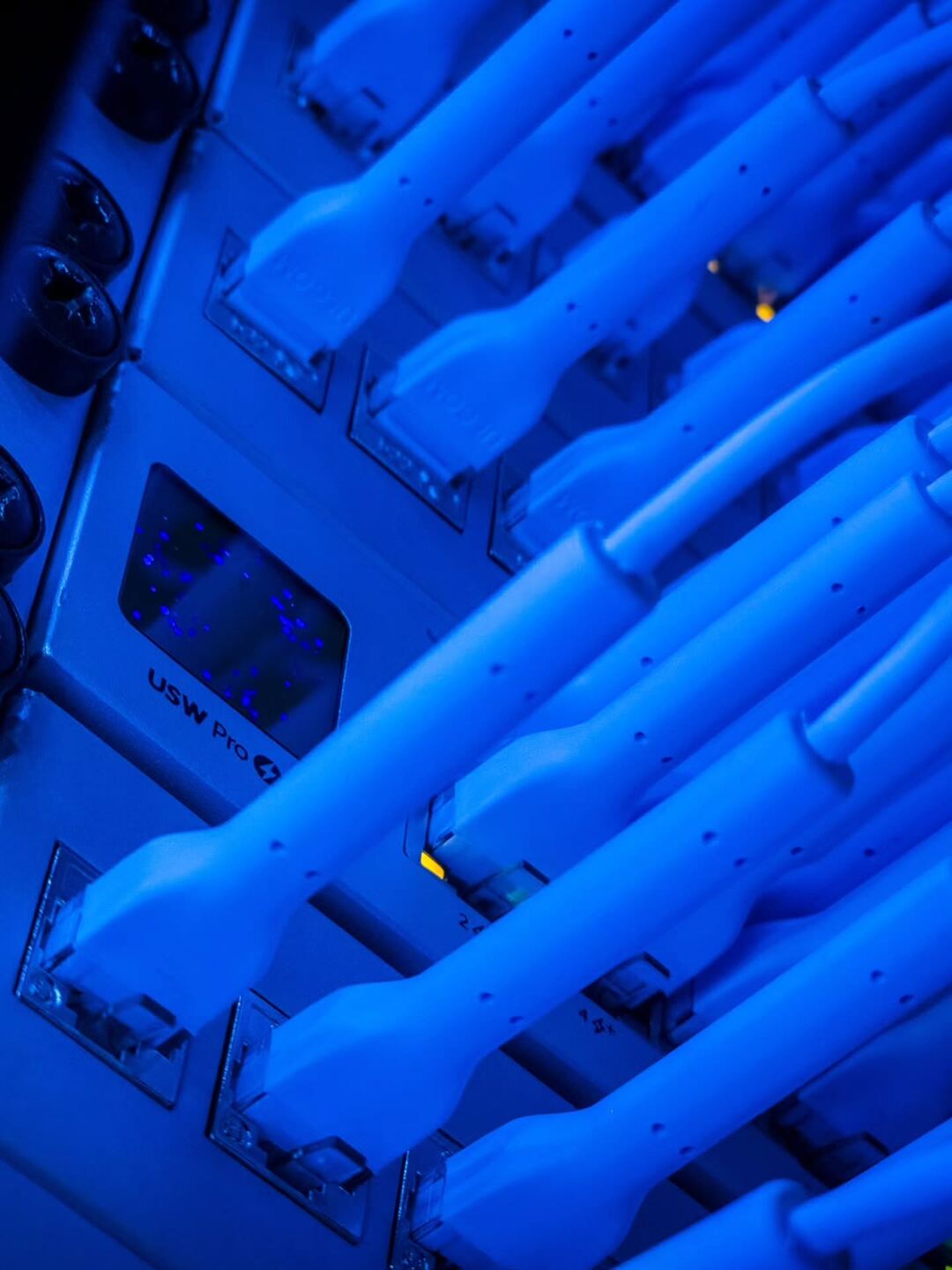

Close-up of patch leads in a UniFi switch

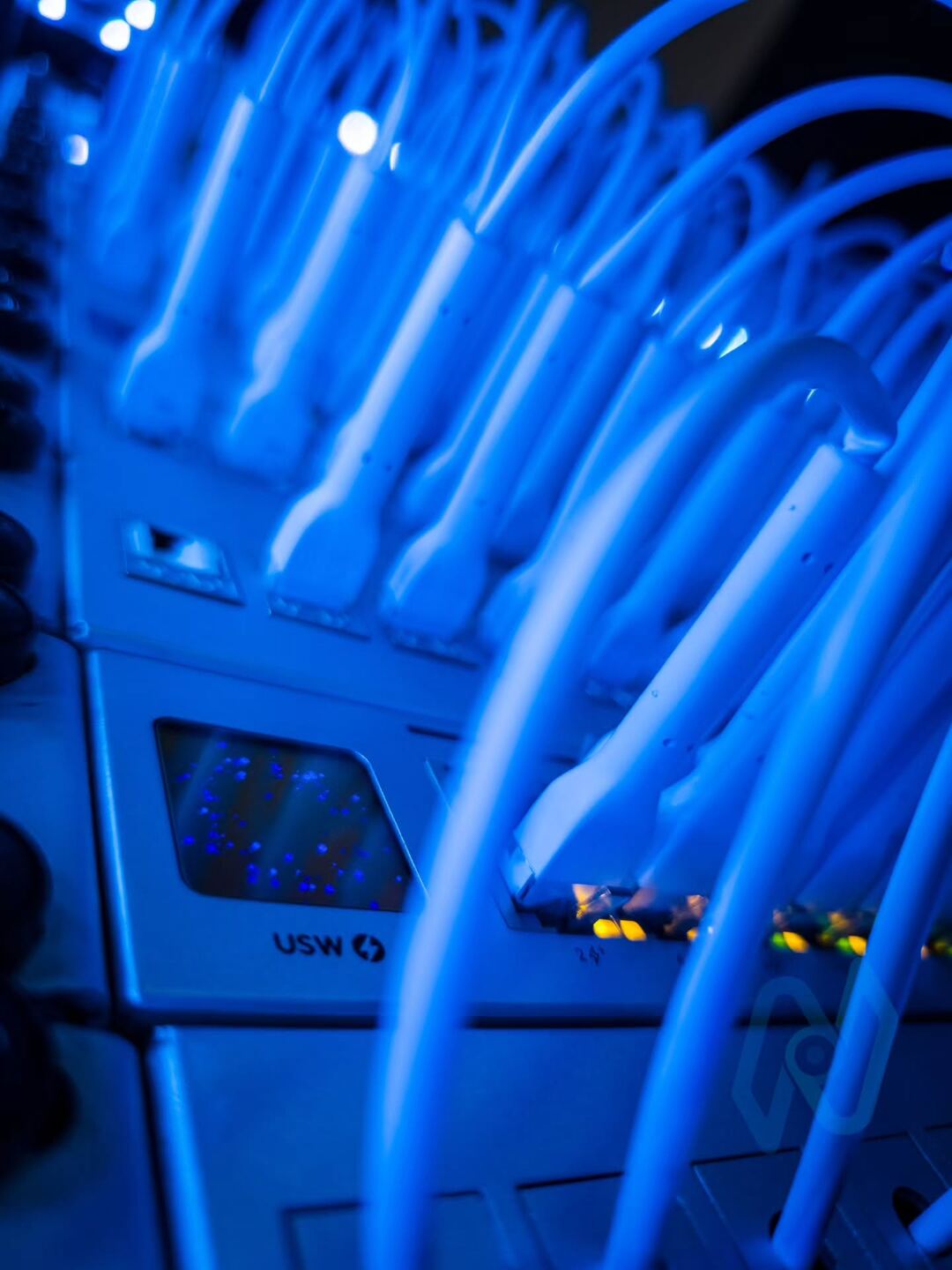

Patch leads plugged into UniFi switch ports, with status lights

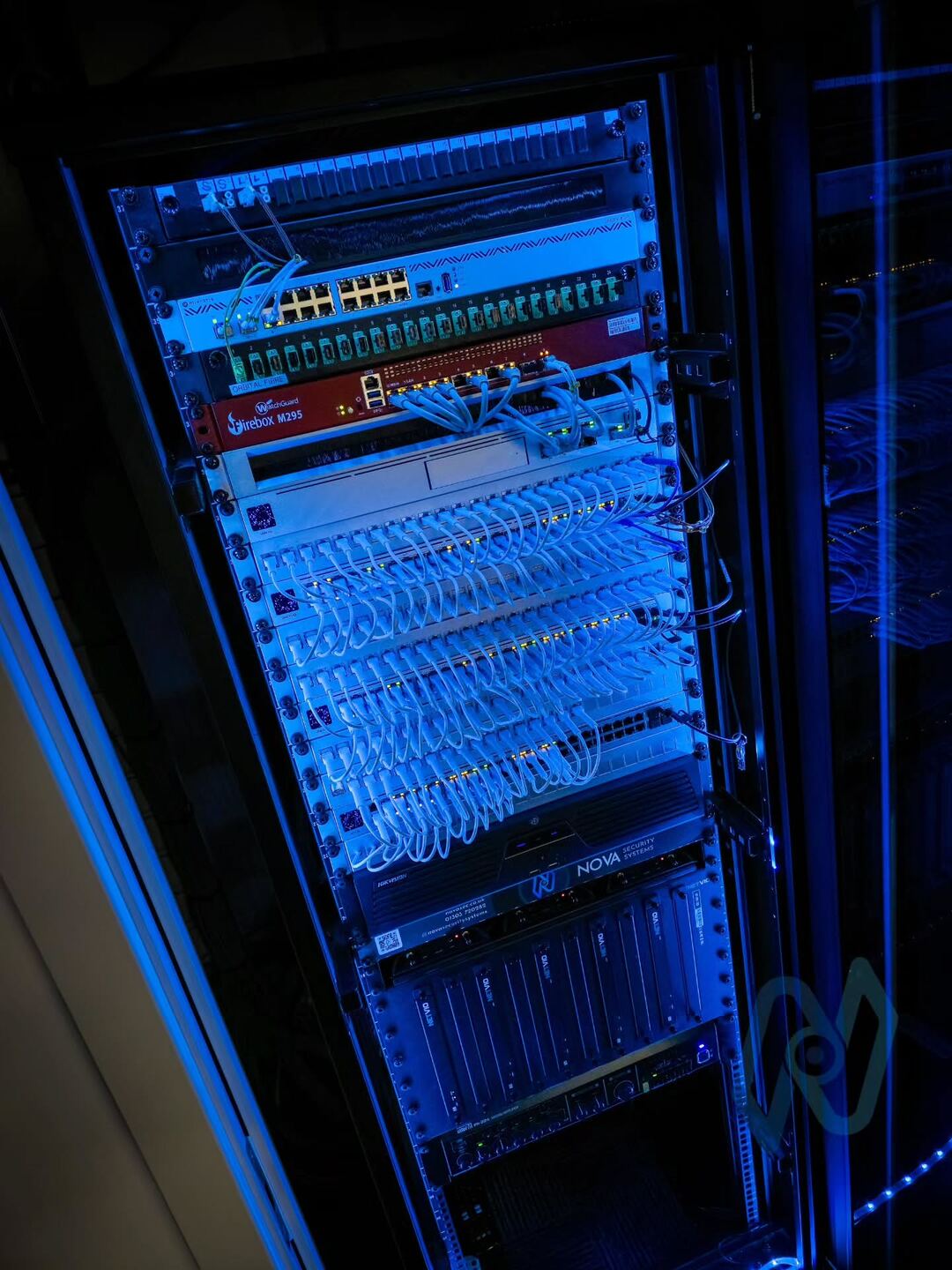

The network rack from the side, with the firewall, patching and equipment below

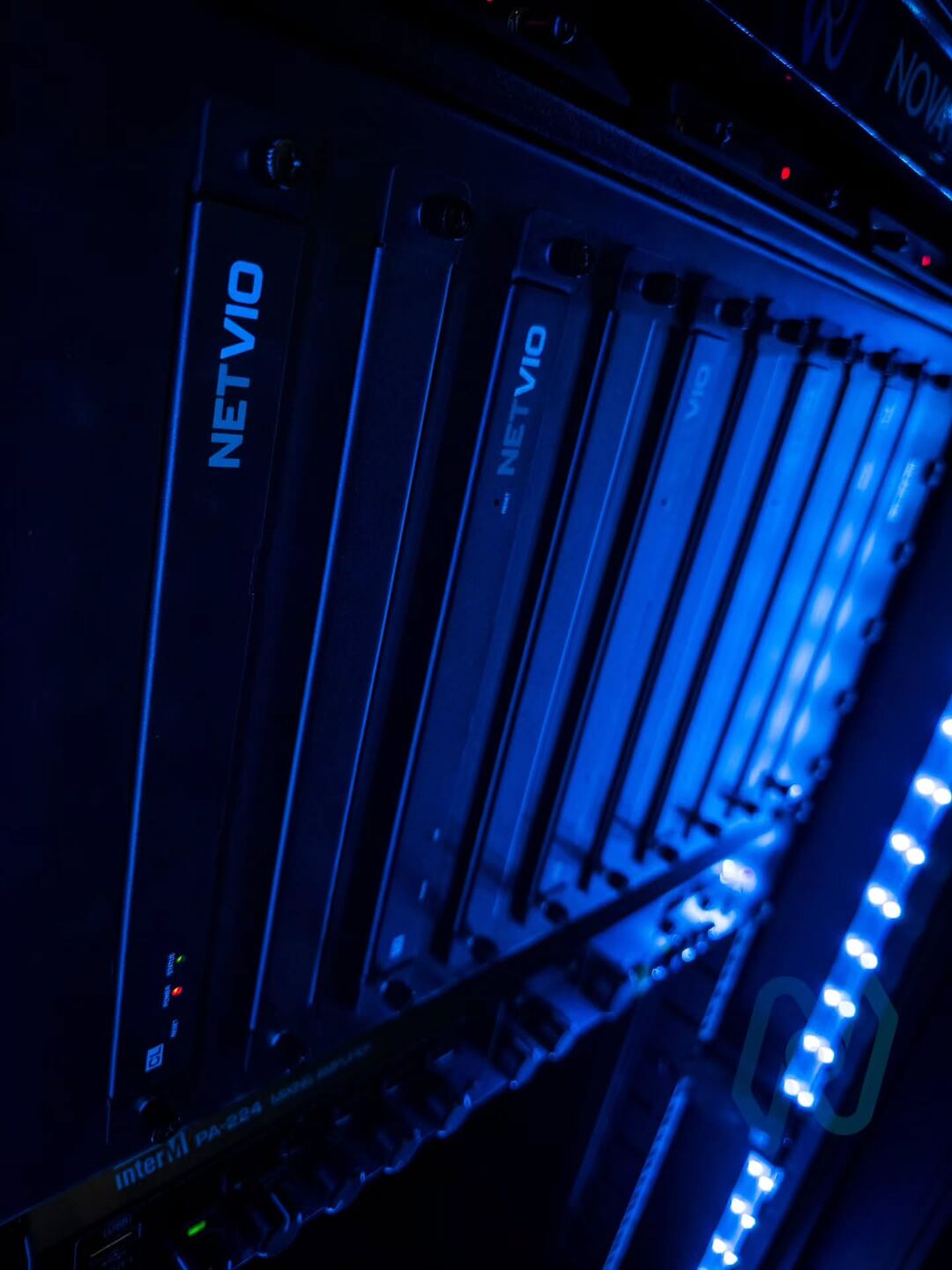

Rack-mounted equipment lit by the cabinet’s blue LED strip

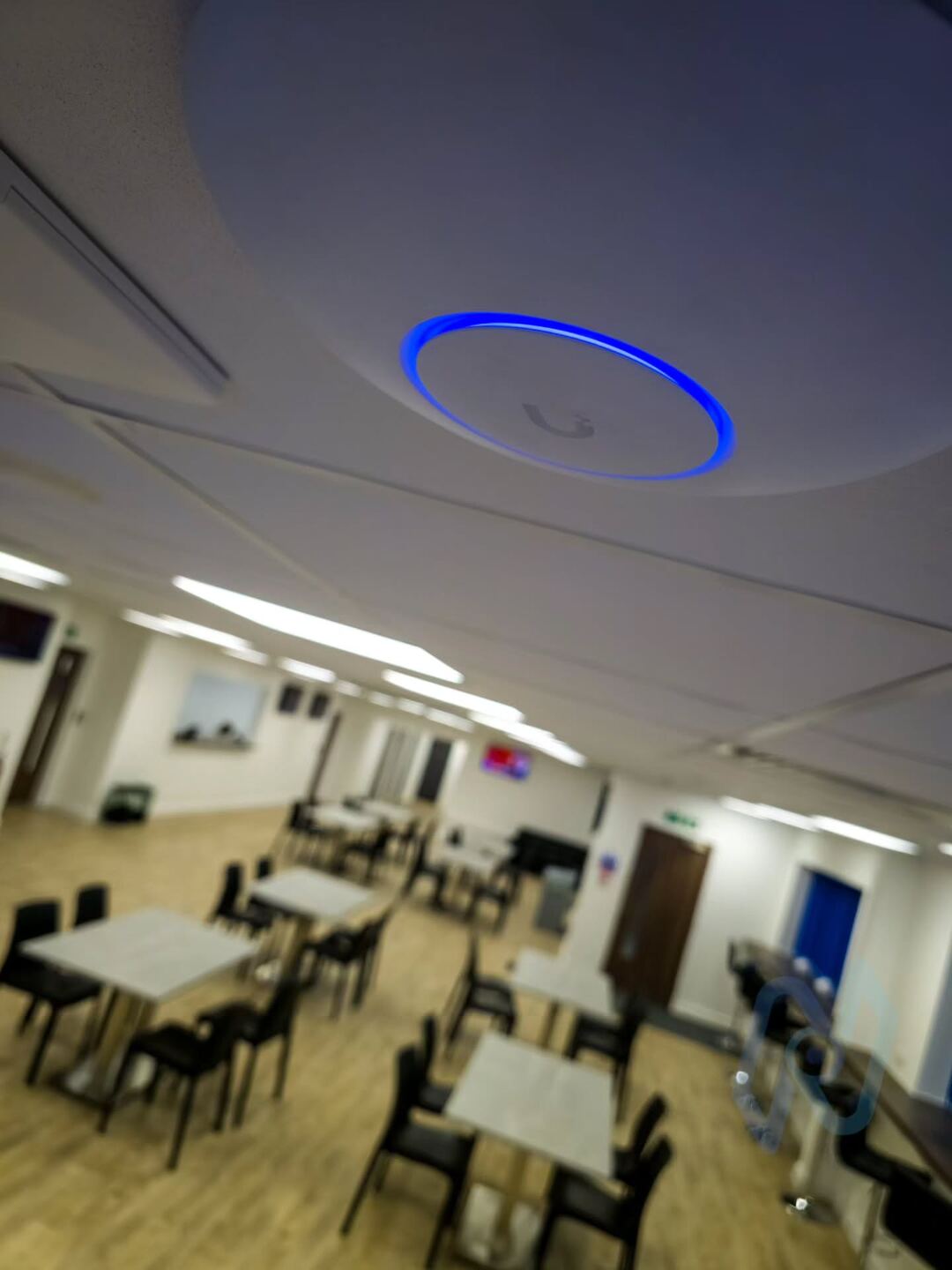

Ubiquiti UniFi WiFi access point on the ceiling of a staff canteen
